• Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts

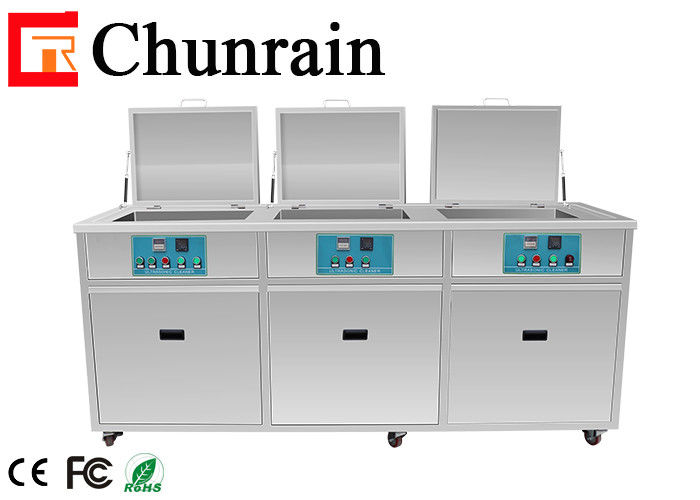

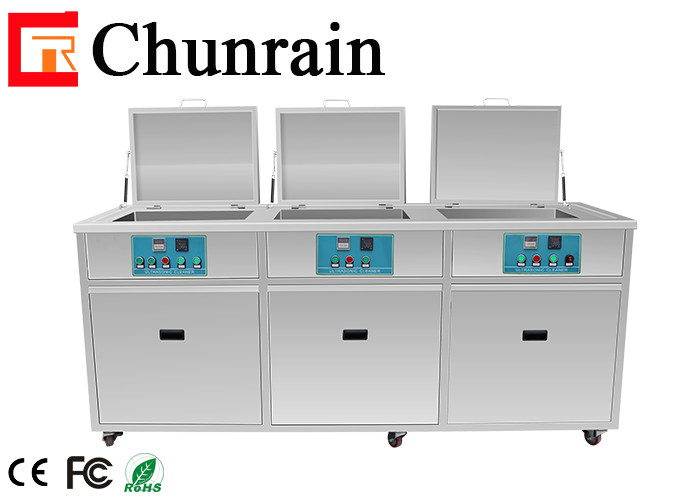

Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts

Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts

Product Details:

Place of Origin: China
Brand Name: Chunrain
Certification: CE FCC ROHS
Model Number: CR-3036GH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Case
Delivery Time: 2-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 90000pcs Monthly
Get Best Price Contact Now

Detail Information

Tank Size: 500*350*350mm Capacity: 61L
Frequency: 28KHZ/40KHZ Ultrasonic Power: 900W
1st Tank: Ultrasonic Cleaning 2nd Tank: Ultrasonic Rinsing
3rd Tank: Hot Air Drying System
Highlight:

61L Multi Tank Ultrasonic Cleaner

,

Stamping Parts Multi Tank Ultrasonic Cleaner

,

Rinsing Drying industrial sonic cleaner

Product Description

Three Tanks Ultrasonic Cleaner For Metal Stamping Parts With Cleaning Rinsing And Drying CR-3036GH 61L



1. Stainless steel tank has resistance to wear and long work life.

2. Tank capacity: 61Liter

3. With Stainless steel basket

4. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement

5. Industrial control chip microcontroller.flexible circuit boards control, more secure & stable

6. With drainage,basket,lid and Multi-direction castors

7.1st tank:Ultrasonic Cleaning With Filtration System

8. 2nd tank:Ultrasonic Rinsing

9. 3rd tank:With Circulating Hot Air Drying System



Product Parameters
  Model CR-3036GH   Capacity 61L

  1st Tank

  (Cleaning Tank)

  Tank size:500*350*350mm

  Frequency:28/40KHZ

  Ultrasonic Power:900W

  Heating power:1500W

  Timer:1-99H adjustable

  Heater:20-95℃ adjustable

  With Filtration System

 2nd Tank

(Rinsing Tank)

  Tank size:500*350*350mm

  Frequency:28/40KHZ

  Ultrasonic Power:900W

  Heating power:1500W

  Timer:1-99H adjustable

  Heater:20-95℃ adjustable

  3rd Tank

  (Drying Tank)

  Tank size:500*350*350mm

  Heating power:4500W

  Timer:1-99H adjustable

  Heater: 20-110℃ adjustable

  With Circulating Hot Air Drying System

Power Supply   AC 380-440V 50/60Hz
  AC 220-240V 50/60Hz
  Certification   CE/FCC/ROHS



Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts 0Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts 1

Product Models
Model Model No. Capacity Frequency

Tank size

(mm)

Ultrasonic Power

(W)



Heating

Power

(W)



Cleaning Filtration Rinsing Drying

3 Tanks
1,Cleaning

+Filtration
2,Rinsing
3,Drying

CR-3024GH 38L 28/40Khz 500*300*250 600 1500 yes yes yes yes
CR-3036GH 61L 28/40Khz 500*350*350 900 1500  yes yes yes yes
CR-3048GH 88L 28/40Khz 550*400*400 1200 3000  yes yes yes yes
CR-3060GH 108L 28/40Khz 600*450*400 1500 3000  yes yes yes yes
CR-3072GH 135L 28/40Khz 600*500*450 1800 4500  yes yes yes yes
CR-3096GH 175L 28/40Khz 700*500*500 2400 6000  yes yes yes yes
CR-3120GH 264L 28/40Khz 800*600*550 3000 6000 yes yes yes yes
CR-3144GH 360L 28/40Khz 1000*600*600 3600 9000  yes yes yes yes
CR-3180GH 560L 28/40Khz 1000*800*700 4500 12000 yes yes yes yes
CR-3216GH 540L 28/40Khz 1000*900*600 5400 18000 yes yes yes yes
CR-3288GH 960L 28/40Khz 1200*1000*800 7200 24000 yes yes yes yes
CR-432GH 1500L 28/40Khz 1500*1000*1000 10800 27000 yes yes yes yes

Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts 2Rinsing Drying 61L Multi Tank Ultrasonic Cleaner For Metal Stamping Parts 3


Advantages


1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3. After-sales

Our ultrasonic cleaning equipment undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.

♦ Payment Methods♦

These payments of T/T,Western Union,Paypal are accepted. If you have any problem with the payment, please leave a message to us.

♦ Logistics♦

DHL, EMS and Fedex are our choices. If you prefer other reliable shipping company, please leave a message to us.

♦ Tracking Number♦

Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.

♦ Feedback♦

Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.

♦ Refund♦

Any damage or shortage of our goods after you receive your items, please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for heavy-damage. Before refund is accepted, please leave a message to us.



Applications of Ultrasonic Cleaner



Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.

Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.

Chemical and biological Industry: cleaning, disinfection and sterilization of chemical instrument and laboratory vessel. Assisted accelerate the emulsification, decomposition and extraction.

Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.

Optical Industry: Remove oil, sweat and ash on the Optical instruments and all kind of lens.

Aviation industry: Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system

Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories

Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.

Power industry: Remove Ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head

Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on Lenses, resin sheet, glass, lighting, arts and crafts before coating

Medical instruments: Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.

Precision machinery: Mainly remove Abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on Screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.



FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
5. Q: What about the warranty?
A: 1 Year warranty for all ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
