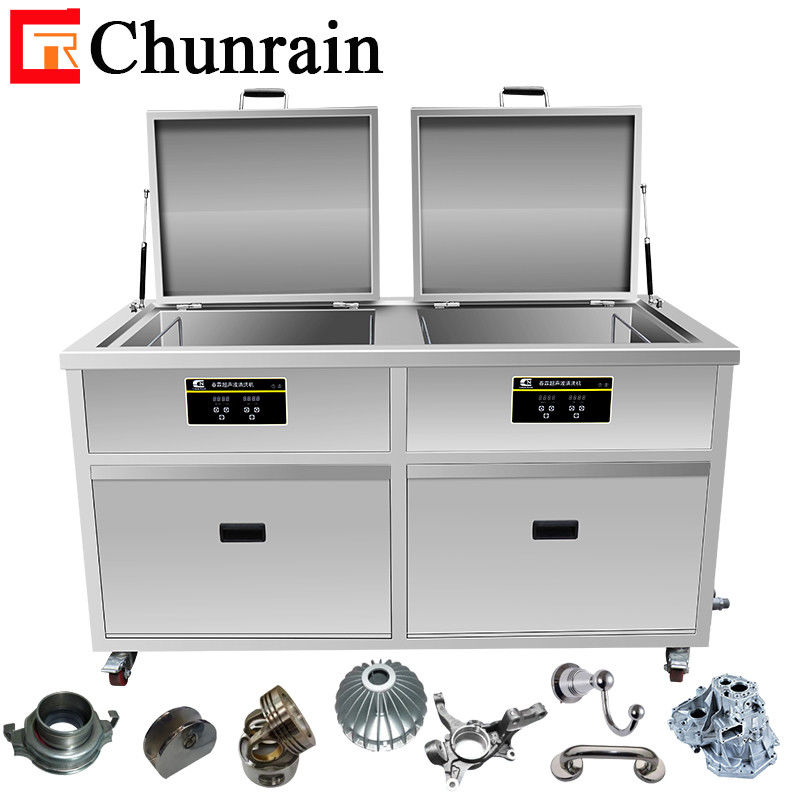

Aerugo Cleaning Ultrasonic Wash Tank , 135L Component Cleaning Machine
Product Details:
Place of Origin: | China |
Brand Name: | Chunrain |
Certification: | CE FCC ROHS |
Model Number: | CR-2036GH |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 2-10 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 90000pcs Monthly |
Detail Information |
|||
Tank Size: | 600*500*450mm | Capacity: | 135L |
---|---|---|---|
Frequency: | 28KHZ/40KHZ | Ultrasonic Power: | 1800W |
1st Tank: | Ultrasonic Cleaning | 2nd Tank: | Hot Air Drying System |
Highlight: | aerugo Cleaning ultrasonic wash tank,135L ultrasonic wash tank,ultrasonic component cleaning machine |
Product Description
2 Tanks Ultrasonic Cleaner For Copper Parts Cleaning aerugo With Drying Function CR-2036GH 135L
1. stainless steel tank has resistance to wear and long work life.
2. tank capacity: 135Liter
3. with Stainless steel basket
4. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5. industrial control chip
microcontroller.flexible circuit boards control, more secure & stable
6. with drainage,basket,lid and Multi-direction castors
7. 1st tank:Ultrasonic Cleaning With Filtration System
8. 2nd tank:With Circulating Hot Air Drying System
9. It can applied to clean cast iron, steel, stainless steel, brass, bronze
Product Parameters | |||
Model | CR-2036GH | Capacity | 135L |
1st Tank (Cleaning Tank) |
Tank size:600*500*450mm Frequency:28/40KHZ Ultrasonic Power:1800W Heating power:4500W Timer:1-99H adjustable Heater:20-95℃ adjustable With Filtration System |
2nd Tank (Drying Tank) |
Tank size:600*500*450mm Heating power:6000W Timer:1-99H adjustable Heater: 20-110℃ adjustable With Circulating Hot Air Drying System |
Power Supply | AC 380-440V 50/60Hz AC 220-240V 50/60Hz |
Certification | CE/FCC/ROHS |
Product Models | |||||||||
Model | Model No. | Capacity | Frequency |
Tank size (mm) |
Ultrasonic Power (W) |
Heating Power (W) |
Cleaning | Filtration | Drying |
1.Cleaning + Filtration 2.Drying
|
CR-2012GH | 38L | 28/40Khz | 500*300*250 | 600 | 1500 | Yes | yes | yes |
CR-2018GH | 61L | 28/40Khz | 500*350*350 | 900 | 1500 | Yes | yes | yes | |
CR-2024GH | 88L | 28/40Khz | 550*400*400 | 1200 | 3000 | Yes | yes | yes | |
CR-2030GH | 108L | 28/40Khz | 600*450*400 | 1500 | 3000 | Yes | yes | yes | |
CR-2036GH | 135L | 28/40Khz | 600*500*450 | 1800 | 4500 | Yes | yes | yes | |
CR-2048GH | 175L | 28/40Khz | 700*500*500 | 2400 | 4500 | Yes | yes | yes | |
CR-2060GH | 264L | 28/40Khz | 800*600*550 | 3000 | 6000 | Yes | yes | yes | |
CR-2072GH | 360L | 28/40Khz | 1000*600*600 | 3600 | 9000 | Yes | yes | yes | |
CR-2090GH | 560L | 28/40Khz | 1000*800*700 | 4500 | 12000 | Yes | yes | yes | |
CR-2108GH | 540L | 28/40Khz | 1000*900*600 | 5400 | 18000 | Yes | yes | yes | |
CR-2144GH | 960L | 28/40Khz | 1200*1000*800 | 7200 | 24000 | Yes | yes | yes | |
CR-2216GH | 1500L | 28/40Khz | 1500*1000*1000 | 10800 | 27000 | Yes | yes | yes |
Advantages
1. Low cleaning cost, energy saving and environmental protection, long service life.
2. The equipment can be produced continuously for a long time, with good cleaning effect, high efficiency and low noise.
3. In the industry,CHUNRAIN is the first Chinese manufacturer to use full-bridge IGBT using high-power integrated power source,and Germany Siemens control module, to ensure high resistance capability for high temperature, high pressure and overheating, make the cleaner more perfect.
4. Adopting original Germany CeramTec piezoelectric ceramic chip.
5. Utilization of international state-of-the-art IC, microprocessor circuit, protective circuit and digital display.
6. Utilization of earthing terminal is better for protection for the machine.
7. Unique design of saw-teeth water overflowing to ensure proper level and that the dirt can timely be escaped.
8. Multi ultrasonic directions ensure completely and thoroughly cleaning for the part.
9. Easy operation, with digital display function, operation manual and operate video are free provided, thus to reduce the cost.
Applications of Ultrasonic Cleaner
Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.
Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.
Watches and Jewelry industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on Jewelry, necklaces, jade articles, watches, glasses, etc.
Chemical and biological Industry: cleaning, disinfection and sterilization of chemical instrument and laboratory vessel. Assisted accelerate the emulsification, decomposition and extraction.
Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.
Optical Industry: Remove oil, sweat and ash on the Optical instruments and all kind of lens.
Aviation industry: Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system
Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories
Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.
Power industry: Remove Ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head
Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on Lenses, resin sheet, glass, lighting, arts and crafts before coating
Medical instruments: Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.
Precision machinery: Mainly remove Abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on Screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.
FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
5. Q: What about the warranty?
A: 1 Year warranty for all ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
