• 38L Multi Tank Ultrasonic Cleaner

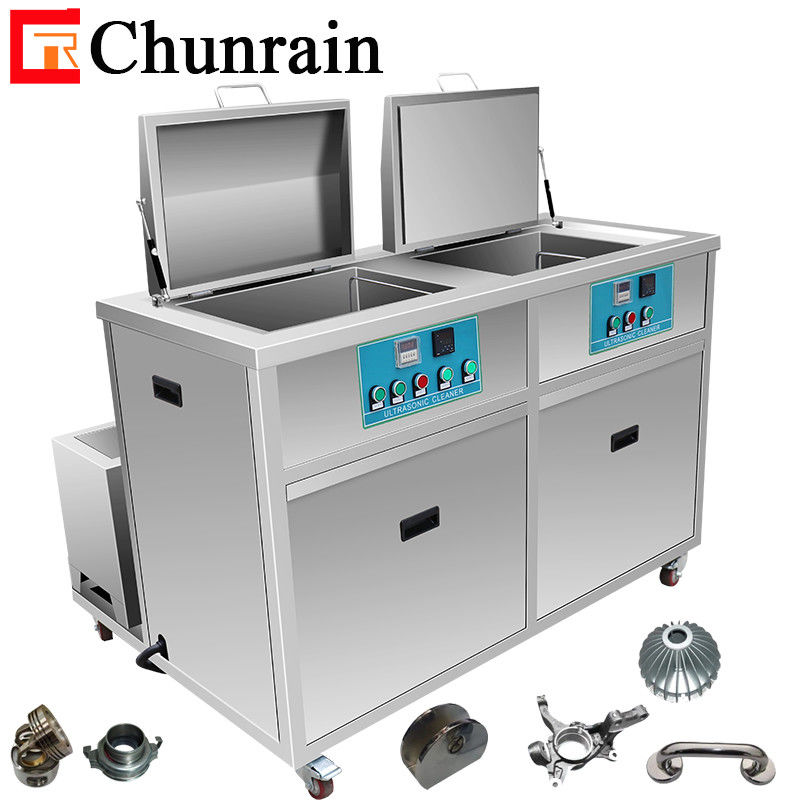

38L Multi Tank Ultrasonic Cleaner

38L Multi Tank Ultrasonic Cleaner

Product Details:

Place of Origin: China
Brand Name: Chunrain
Certification: CE FCC ROHS
Model Number: CR-2012GH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Case
Delivery Time: 2-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 90000pcs Monthly
Get Best Price Contact Now

Detail Information

Tank Size: 500*300*250mm Capacity: 38L
Frequency: 28KHZ/40KHZ Ultrasonic Power: 600W
1st Tank: Ultrasonic Cleaning 2nd Tank: Hot Air Drying System
Highlight:

99H Multi Tank Ultrasonic Cleaner

,

38L Multi Tank Ultrasonic Cleaner

Product Description

Compared to many other cleaning method,ultrasonic cleaning machine have advantages are as follow



Industrial Two Tanks Ultrasonic Cleaner For Hardware Parts Gears With Cleaning And Drying CR-2012GH 38L

  • Cleaning effect is good, high cleanliness and cleanness of all artifacts;
  • Cleaning faster, improve production efficiency;
  • Don’t need hand touching cleaning fluid, safe and reliable;
  • Deep blind hole, crack, and the product nook can be cleaned;
  • Save solvent, thermal energy, work place and artificial, etc.
Product Parameters
  Model CR-2012GH   Capacity 38L

  1st Tank

  (Cleaning Tank)

  Tank size:500*300*250mm

  Frequency:28/40KHZ

  Ultrasonic Power:600W

  Heating power:1500W

  Timer:1-99H adjustable

  Heater:20-95℃ adjustable

  With Filtration System

  2nd Tank

  (Drying Tank)

  Tank size:500*300*250mm

  Heating power:4500W

  Timer:1-99H adjustable

  Heater: 20-110℃ adjustable

  With Circulating Hot Air Drying System

Power Supply   AC 380-440V 50/60Hz
  AC 220-240V 50/60Hz
  Certification   CE/FCC/ROHS



38L Multi Tank Ultrasonic Cleaner 0



Product Models
Model  Model No. Capacity Frequency

Tank size

(mm)

Ultrasonic Power

(W)

Heating

Power

(W)

Cleaning Filtration Drying

 1.Cleaning

+

Filtration

 2.Drying



CR-2012GH 38L 28/40Khz 500*300*250 600  1500 Yes yes yes
CR-2018GH 61L 28/40Khz 500*350*350 900 1500  Yes yes yes
CR-2024GH 88L 28/40Khz 550*400*400 1200 3000  Yes yes yes
CR-2030GH 108L 28/40Khz 600*450*400 1500 3000 Yes yes yes
CR-2036GH 135L 28/40Khz 600*500*450 1800 4500 Yes yes yes
CR-2048GH 175L 28/40Khz 700*500*500 2400 4500  Yes yes yes
CR-2060GH 264L 28/40Khz 800*600*550 3000 6000  Yes yes yes
CR-2072GH 360L 28/40Khz 1000*600*600 3600 9000 Yes yes yes
CR-2090GH 560L 28/40Khz 1000*800*700 4500 12000 Yes yes yes
CR-2108GH 540L 28/40Khz 1000*900*600 5400 18000  Yes yes yes
CR-2144GH 960L 28/40Khz 1200*1000*800 7200 24000  Yes yes yes
CR-2216GH 1500L 28/40Khz 1500*1000*1000 10800  27000  Yes yes yes


38L Multi Tank Ultrasonic Cleaner 1
Advantages

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. OEM is available if the quantity is large.

4. We offer very competitive for all our products.

3.After-sales

Our ultrasonic cleaning equipment undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.

♦Payment Methods♦

These payments of T/T,Western Union,Paypal are accepted. If you have any problem with the payment, please leave a message to us.

♦Logistics♦

DHL, EMS and Fedex are our choices. If you prefer other reliable shipping company, please leave a message to us.

♦Tracking Number♦

Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.

♦Feedback♦

Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.

♦Refund♦

Any damage or shortage of our goods after you receive your items, please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for heavy-damage. Before refund is accepted, please leave a message to us.




Applications of Ultrasonic Cleaner

Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.

Household supplies: Daily use of items such as gold and silver jewelry, jewelry, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools and milk bottles, nipples, and fruits like grapes, cherries and strawberries. While cleaning the object, it can also be sterilized. In addition, ultrasound can also clean and care hands, to achieve the effect of skin beauty, enhance skin elasticity.

Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.

Watches and Jewelry industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on Jewelry, necklaces, jade articles, watches, glasses, etc.

Chemical and biological Industry: cleaning, disinfection and sterilization of chemical instrument and laboratory vessel. Assisted accelerate the emulsification, decomposition and extraction.

Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.

Optical Industry: Remove oil, sweat and ash on the Optical instruments and all kind of lens.

Aviation industry: Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system

Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories

Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.

Power industry: Remove Ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head

Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on Lenses, resin sheet, glass, lighting, arts and crafts before coating

Medical instruments: Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.

Precision machinery: Mainly remove Abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on Screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.



FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
5. Q: What about the warranty?
A: 1 Year warranty for all ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
