FCC Wheel Hub 540L Automatic Ultrasonic Cleaner Washing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Chunrain |
| Certification: | CE FCC ROHS |
| Model Number: | CR-1108GS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 2-10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 90000pcs Monthly |
|
Detail Information |
|||
| Tank Size: | 1000*900*600mm | Capacity: | 540L |
|---|---|---|---|
| Frequency: | 28KHZ/40KHZ | Ultrasonic Power: | 5400W |
| Heating Power: | 18000W | Voltage (V): | 3P 380~440V/200-240V |
| Highlight: | Wheel Hub Automatic Ultrasonic Cleaner,FCC Automatic Ultrasonic Cleaner,540L ultrasonic cleaner washing machine |
||
Product Description

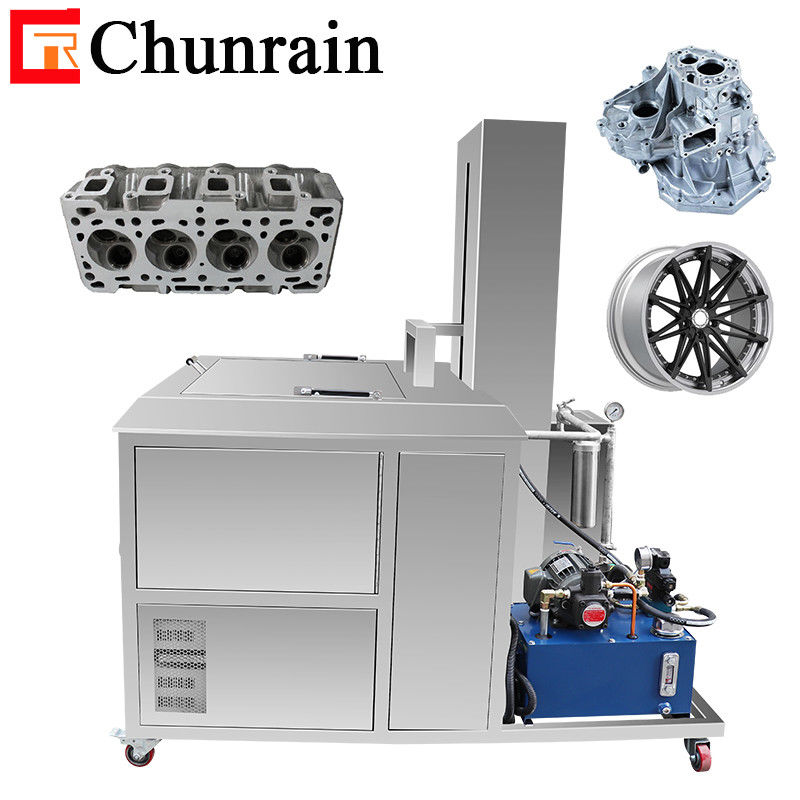

Automatic Customized Wheel Hub Ultrasonic Cleaner Washing Machine With Lifting System CR-1108GS 540L
Compared to many other cleaning method,ultrasonic cleaning machine have advantages are as follow
- Cleaning effect is good, high cleanliness and cleanness of all artifacts;
- Cleaning faster, improve production efficiency;
- Don’t need hand touching cleaning fluid, safe and reliable;
- Deep blind hole, crack, and the product nook can be cleaned;
- Save solvent, thermal energy, work place and artificial, etc.
| Product Parameters | |||
| Model | CR-1108GS | Capacity | 540L |
| Frequency | 28KHZ or 40KHZ | Tank size | 1000*900*600mm |
| Ultrasonic Power | 0-5400W adjust | Heating power | 18000W |
| Timer | 0-99H adjustable | Heater | 20-95℃ adjustable |
| Power Supply |
AC 380-440V 50/60HZ |
Certification |
CE/FCC/ROHS |
| Function | With Filtration System And Lifting | ||
| Product Models | ||||||||||
| Model |
Frequency |
Capacity |
Tank size (L*W*H MM) | Ultrasonic Power(W) |
Heater power |
Timer (H) |
Heater (℃) |
Cleaning | Filter | Lift |
| CR-120GS | 28/40 | 38 | 500*300*250 | 0~600 | 1500 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-180GS | 28/40 | 61 | 500*350*350 | 0~900 | 1500 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-240GS | 28/40 | 88 | 550*400*400 | 0~1200 | 3000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-300GS | 28/40 | 108 | 600*450*400 | 0~1500 | 3000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-301GS | 28/40 | 96 | 800*300*400 | 0~1500 | 3000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-360GS | 28/40 | 135 | 600*500*450 | 0~1800 | 4500 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-480GS | 28/40 | 175 | 700*500*500 | 0~2400 | 6000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-600GS | 28/40 | 264 | 800*600*550 | 0~3000 | 6000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-720GS | 28/40 | 360 | 1000*600*600 | 0~3600 | 9000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-900GS | 28/40 | 560 | 1000*800*700 | 0~4500 | 12000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-1108GS | 28/40 | 540 | 1000*900*600 | 0-5400 | 18000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-1144GS | 28/40 | 960 | 1200*1000*800 | 0-7200 | 24000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-1216GS | 28/40 | 1500 | 1500*1000*1000 | 0-10800 | 27000 | 0~99(h) | 20~95 | YES | YES | YES |
Advantages
1. Low cleaning cost, energy saving and environmental protection, long service life.
2. The equipment can be produced continuously for a long time, with good cleaning effect, high efficiency and low noise.
3. In the industry,CHUNRAIN is the first Chinese manufacturer to use full-bridge IGBT using high-power integrated power source,and Germany Siemens control module, to ensure high resistance capability for high temperature, high pressure and overheating, make the cleaner more perfect.
4. Adopting original Germany CeramTec piezoelectric ceramic chip.
5. Utilization of international state-of-the-art IC, microprocessor circuit, protective circuit and digital display.
APPLICATION
1. Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and
entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and
pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation,
processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems,
deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
