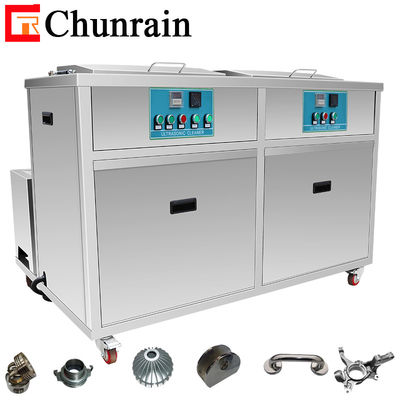

Multislot Ultrasonic Wash Tank
Product Details:
Place of Origin: | China |
Brand Name: | Chunrain |
Certification: | CE FCC ROHS |
Model Number: | CR-2018GH |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Wooden Case |
Delivery Time: | 2-10 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 90000pcs Monthly |
Detail Information |
|||
Tank Size: | 500*350*350mm | Capacity: | 61L |
---|---|---|---|
Frequency: | 28KHZ/40KHZ | Ultrasonic Power: | 900W |
1st Tank: | Ultrasonic Cleaning | 2nd Tank: | Hot Air Drying System |
Highlight: | Multislot ultrasonic wash tank,61liters ultrasonic wash tank |
Product Description
Compared to many other cleaning method,ultrasonic cleaning machine have advantages are as follow
Industrial Multislot Ultrasonic Cleaner For Precision Bearings With Cleaning And Drying CR-2018GH 61L
- Cleaning effect is good, high cleanliness and cleanness of all artifacts;
- Cleaning faster, improve production efficiency;
- Don’t need hand touching cleaning fluid, safe and reliable;
- Deep blind hole, crack, and the product nook can be cleaned;
- Save solvent, thermal energy, work place and artificial, etc.
Product Parameters | |||
Model | CR-2018GH | Capacity | 61L |
1st Tank (Cleaning Tank) |
Tank size:500*350*350mm Frequency:28/40KHZ Ultrasonic Power:900W Heating power:1500W Timer:1-99H adjustable Heater:20-95℃ adjustable With Filtration System |
2nd Tank (Drying Tank) |
Tank size:500*350*350mm Heating power:4500W Timer:1-99H adjustable Heater: 20-110℃ adjustable With Circulating Hot Air Drying System |
Power Supply | AC 380-440V 50/60Hz AC 220-240V 50/60Hz |
Certification | CE/FCC/ROHS |
Product Models | |||||||||
Model | Model No. | Capacity | Frequency |
Tank size (mm) |
Ultrasonic Power (W) |
Heating Power (W) |
Cleaning | Filtration | Drying |
1.Cleaning + Filtration 2.Drying
|
CR-2012GH | 38L | 28/40Khz | 500*300*250 | 600 | 1500 | Yes | yes | yes |
CR-2018GH | 61L | 28/40Khz | 500*350*350 | 900 | 1500 | Yes | yes | yes | |
CR-2024GH | 88L | 28/40Khz | 550*400*400 | 1200 | 3000 | Yes | yes | yes | |
CR-2030GH | 108L | 28/40Khz | 600*450*400 | 1500 | 3000 | Yes | yes | yes | |
CR-2036GH | 135L | 28/40Khz | 600*500*450 | 1800 | 4500 | Yes | yes | yes | |
CR-2048GH | 175L | 28/40Khz | 700*500*500 | 2400 | 4500 | Yes | yes | yes | |
CR-2060GH | 264L | 28/40Khz | 800*600*550 | 3000 | 6000 | Yes | yes | yes | |
CR-2072GH | 360L | 28/40Khz | 1000*600*600 | 3600 | 9000 | Yes | yes | yes | |
CR-2090GH | 560L | 28/40Khz | 1000*800*700 | 4500 | 12000 | Yes | yes | yes | |
CR-2108GH | 540L | 28/40Khz | 1000*900*600 | 5400 | 18000 | Yes | yes | yes | |
CR-2144GH | 960L | 28/40Khz | 1200*1000*800 | 7200 | 24000 | Yes | yes | yes | |
CR-2216GH | 1500L | 28/40Khz | 1500*1000*1000 | 10800 | 27000 | Yes | yes | yes |
Advantages
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. OEM is available if the quantity is large.
4. We offer very competitive for all our products.
3.After-sales
Our ultrasonic cleaning equipment undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.
♦Payment Methods♦
These payments of T/T,Western Union,Paypal are accepted. If you have any problem with the payment, please leave a message to us.
♦Tracking Number♦
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
♦Feedback♦
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
Applications of Ultrasonic Cleaner
Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.
Household supplies: Daily use of items such as gold and silver jewelry, jewelry, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools and milk bottles, nipples, and fruits like grapes, cherries and strawberries. While cleaning the object, it can also be sterilized. In addition, ultrasound can also clean and care hands, to achieve the effect of skin beauty, enhance skin elasticity.
Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.
Watches and Jewelry industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on Jewelry, necklaces, jade articles, watches, glasses, etc.
Chemical and biological Industry: cleaning, disinfection and sterilization of chemical instrument and laboratory vessel. Assisted accelerate the emulsification, decomposition and extraction.
Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.
Optical Industry: Remove oil, sweat and ash on the Optical instruments and all kind of lens.
Aviation industry: Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system
Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories
Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.
Power industry: Remove Ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head
Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on Lenses, resin sheet, glass, lighting, arts and crafts before coating
Medical instruments: Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.
Precision machinery: Mainly remove Abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on Screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.
Our service:
1. Any Inquiries will be replied within 24 hours
2. Professional manufacturer. Welcome to visit our website.
3. OEM/ODM available:
1).Silk print logo on the product;
2).Customized product housing;
3).Customized Color box;
4)Any your Idea on product we can help you to design and put it into production
4.Hight quality, fashion designs reasonable & competitive price. fast lead time.
5. After Sale Service:
1).All products will have been strictly Quality Checked in house before pecking.
2).All products will be well packed before shipping.
3).All our products have 1 year warranty, and we sure the product will be free from maintenance within warranty period.
6. Faster delivery:
Sample order in Stock, and 3--7 days for bulk production
7.Payment:
You can pay for the order via: T/T, Western Union, PayPal
8. Shipping
we have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post
You also can choose your own shipping forwarder
FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
5. Q: What about the warranty?
A: 1 Year warranty for all ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
