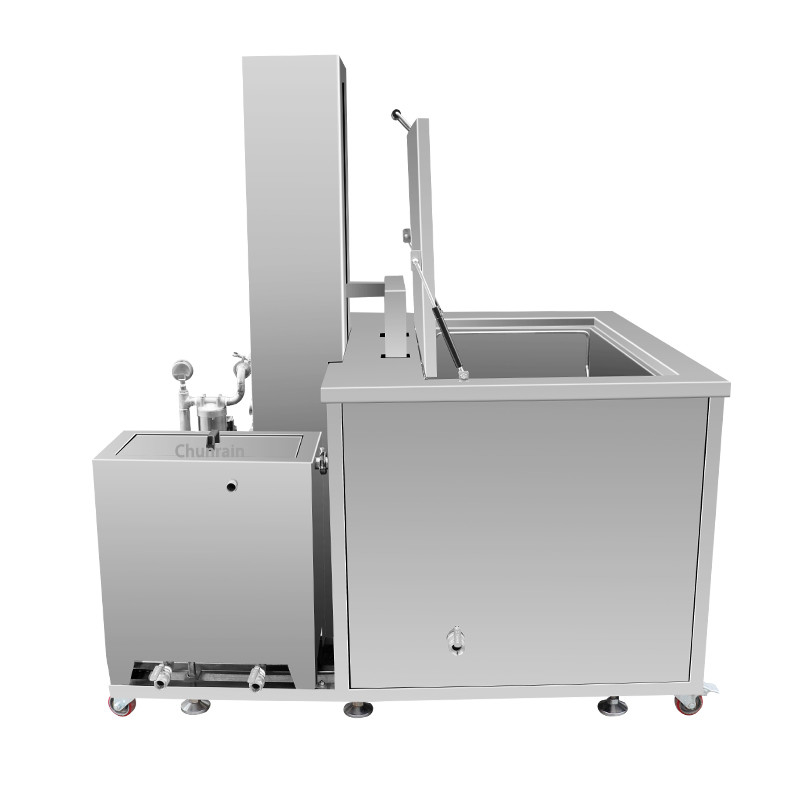

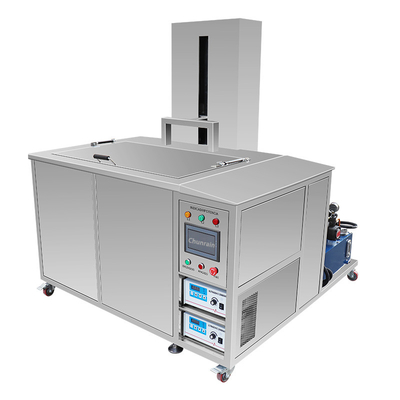

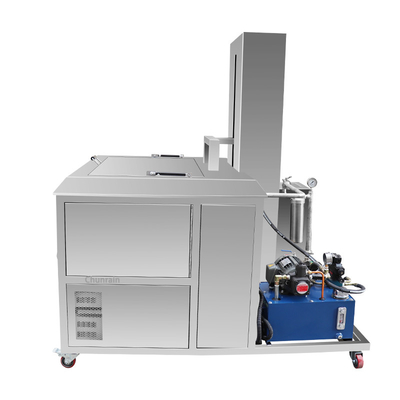

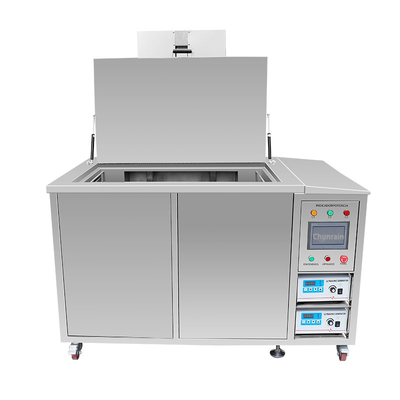

Aircraft Parts Large Capacity Ultrasonic Cleaner With Filter And Lift System
Product Details:
| Place of Origin: | China |
| Brand Name: | Chunrain |
| Certification: | CE FCC ROHS |
| Model Number: | CR-600GS |
|
Detail Information |
|||
| Capacity: | 264L | Inner Tank Size: | 800*600*550mm |
|---|---|---|---|
| Basket Size: | 750*580*500mm | Ultrasonic Frequency: | 28khz Or 40khz |
| Ultrasonic Power: | 3000W | Heating Power: | 9000W |
| High Light: | 264L Ultrasonic Cleaner,Ultrasonic Cleaner With Lift System,3000W Automatic Ultrasonic Cleaner |
||
Product Description
Aircraft Parts Large Capacity Ultrasonic Cleaner With Filter And Lift System
Feature
1. stainless steel tank has resistance to wear and long work life.
2. tank capacity: 264Liter
3. with Stainless steel basket
4. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5. industrial control chip
microcontroller.flexible circuit boards control, more secure & stable
6. with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by chunrain
9. It can applied to clean cast iron, steel, stainless steel, brass, bronze
| Product Parameters | |||
| Model | CR-600GS | Capacity | 264L |
| Frequency | 28KHZ or 40KHZ | Tank size | 800*600*550mm |
| Ultrasonic Power | 3000W | Heating power | 9000W |
| Timer | 0-99Hours | Heater | normal-95℃ |
| Power Supply | AC 380-440V 50/60HZ | Certification | CE/FCC/ROHS |
| Function | WithLifting System AndFiltration System | ||
| Product Models | ||||||||||
| Model | Frequency (KHz) |
Capacity (L) |
Tank size (L*W*H MM) | Ultrasonic Power(W) | Heater power (W) |
Timer (H) |
Heater (℃) |
Cleaning | Filter | Lift |
| CR-120GS | 28/40 | 38 | 500*300*250 | 0~600 | 1500 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-180GS | 28/40 | 61 | 500*350*350 | 0~900 | 1500 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-240GS | 28/40 | 88 | 550*400*400 | 0~1200 | 3000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-300GS | 28/40 | 108 | 600*450*400 | 0~1500 | 3000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-301GS | 28/40 | 96 | 800*300*400 | 0~1500 | 3000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-360GS | 28/40 | 135 | 600*500*450 | 0~1800 | 4500 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-480GS | 28/40 | 175 | 700*500*500 | 0~2400 | 6000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-600GS | 28/40 | 264 | 800*600*550 | 0~3000 | 6000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-720GS | 28/40 | 360 | 1000*600*600 | 0~3600 | 9000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-900GS | 28/40 | 560 | 1000*800*700 | 0~4500 | 12000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-1108GS | 28/40 | 540 | 1000*900*600 | 0-5400 | 18000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-1144GS | 28/40 | 960 | 1200*1000*800 | 0-7200 | 24000 | 0~99(h) | 20~95 | YES | YES | YES |
| CR-1216GS | 28/40 | 1500 | 1500*1000*1000 | 0-10800 | 27000 | 0~99(h) | 20~95 | YES | YES | YES |
Advantages
1. Low cleaning cost, energy saving and environmental protection, long service life.
2. The equipment can be produced continuously for a long time, with good cleaning effect, high efficiency and low noise.
3. In the industry,CHUNRAIN is the first Chinese manufacturer to use full-bridge IGBT using high-power integrated power source,and Germany Siemens control module, to ensure high resistance capability for high temperature, high pressure and overheating, make the cleaner more perfect.
4. Adopting original Germany CeramTec piezoelectric ceramic chip.
5. Utilization of international state-of-the-art IC, microprocessor circuit, protective circuit and digital display.
6. Utilization of earthing terminal is better for protection for the machine.
7. Unique design of saw-teeth water overflowing to ensure proper level and that the dirt can timely be escaped.
8. Multi ultrasonic directions ensure completely and thoroughly cleaning for the part.
9. Easy operation, with digital display function, operation manual and operate video are free provided, thus to reduce the cost.
10. We have a specialize and efficiency design working team to meet all you requirements.
Professional after-sales service team to solve the problem.
11.Low cost, high efficiency, convenient and simple operation, PLC control, beautiful equipment
12.Customized cleaning procedure available,as Ultrasonic clean,Bubble rinsing,Spray cleaning,Wind cutting and hot air drying.
13.Flexible installation with combined cleaning tanks or separated,convenient operation.
14.Cleaning completely for high quality cleanliness.
APPLICATION
1. Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and
entire blocks.
2. Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and
pharmaceutical industries; cleaner reusable, molds.
3. Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation,
processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems,
deburring parts.
4. Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
5. Q: What about the warranty?
A: 1 Year warranty for all ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
